Smaller Rolling Cart for Home Depot DIH Workshop

The free plans on this website are supported with advertising and affiliate revenue.  When you click some links in this plan, you may be helping us earn a small commission.  Thank you for supporting this website.



Difficulty
Beginner Projects
| Print this plan

Free DIY plans to build small modern rolling storage cart - ana-white.com

DISCLOSURE - I'm super excited to partner with The Home Depot to host and design plans for the DIH Workshop. I am being compensated for my work, but all opinions, giddy squeals and enthusiasm are my own.

I can hardly wait!!!

Tomorrow night (Thursday, August 21, 2014), from 6:30-8:00, is the Home Depot DIH Workshop - Rolling Storage Cart!!!

I'll be hosting the Midtown Atlanta Home Depot Workshop in person!  Yep, we flown across the world, to get to build with you Atlanta folks!

As part of this workshop, I've been asked to build my own custom version of this cart.

But before we get to my version, let's enjoy the versions made by some of my blog friends, who will also be hosting this workshop in their local areas:

- Whitney and Ashley of Shanty 2 Chic will be at the Live Oak Home Depot in San Antonio.  I love their stained version with hooks and handles!

- Brook Ulrich of All Things Thrifty will be at the West Valley City Home Depot in Salt Lake City.  Brooke added pink shelves and hardware at the corners for kitchen storage as well.

- Mallory and Savanah of Classy Clutter will be at the Strongsville Home Depot in Cleveland.  I love the blue and chalkboard shelf on their beverage cart variation.

And don't forget - a few more of my blog friends will be hosting this workshop at their local Home Depots:

- Randi of Dukes and Duchesses will at the North Ft. Worth Home Depot in Ft. Worth

- Kim of Too Much Time on My Hands will be at the Brighton Home Depot in Denver

- Kelly Rowe of Live, Laugh, Rowe will be the Edwardsville Home Depot in the St. Louis area

And of course, at all Home Depots across the country, the workshop will be held by knowledgeable associates, so please register and join in on the fun!

I can't wait to see the variations you all come up with!!!!!  Please share!

And now for my version ....

I decided to go smaller in overall size (the shelf bottoms are 1x12s, 24" long)

And instead of the two "ladder" end pieces, as done on the larger cart, I decide on just one, but rotated to run lengthwise.

Was going for a mint green color, but it ended up more of a turquoise,

And I kinda love it.

I had intended to use it as a narrow end table.

You know, to roll into that awkward space between the wall and the sofa.

But we all know what really happened to it.

That is my fault.  The girl loves anything turquoise.  I should have known!

This cart was so easy to build.

After cutting all the boards (plans and cut list follow)

I marked both ends at the same time with a square (marking where the "ladder" rung pieces tie into the sides).

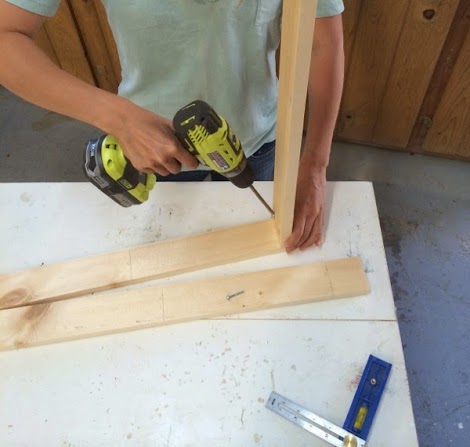

Then I just used my Kreg Jig to make pocket holes and attach the "rungs" to the end pieces.  (You could also use countersunk screws too).

That's the main ladder piece.  Now I just have to make the three shelves.

A little glue,

And I nailed 1x3 around the outsides of the shelves.

Then I placed the shelves inside the "ladder"

Centered them up,

And secured in place with screws.

After paint and hardware,

She's ready to roll!!!

I spent about $25 on lumber and casters (I'd recommend better casters than those ones) for this cute little solid wood cart!

Check out the plans following!

And make sure you register to join us tomorrow night for the Home Depot DIH Rolling Storage Cart Workshop!

XO Ana + Family

Dimensions
Dimensions shown above

Preparation

Shopping List

4 - 1x3 boards, 8 feet long
1 - 1x12 board, 6 feet long
1-1/4" pocket hole screws (12)
1-1/4" finish nails
1-1/4" screws (for attach shelves to frame - could also use pocket hole screws)
wood glue
4 caster wheels

Cut List

3 - 1x12 @ 23-1/2"
6 - 1x3 @ 23-1/2"
6 - 1x3 @ 12-3/4" (measure and cut these to fit after step 1)
2 - 1x3 @ 26-1/4"
3 - 1x3 @ 25" (measure and cut to fit after step 2)

Tools
Tape Measure
Speed Square
Pencil
Safety Glasses
Hearing Protection
Kreg Jig
Drill
Circular Saw
Brad Nailer
General Instructions

Please read through the entire plan and all comments before beginning this project. It is also advisable to review the Getting Started Section. Take all necessary precautions to build safely and smartly. Work on a clean level surface, free of imperfections or debris. Always use straight boards. Check for square after each step. Always predrill holes before attaching with screws. Use glue with finish nails for a stronger hold. Wipe excess glue off bare wood for stained projects, as dried glue will not take stain. Be safe, have fun, and ask for help if you need it. Good luck!

Instructions

Step 1

I recommend doing the shelves first (lessons learned!) so you can measure the shelf, and make the ladder frame piece to fit. So attach 1x3s to the sides of the 1x12s with glue and 1-1/4" nails or staples.

Pocket hole lovers can also attach from underside with 3/4" pocket holes and 1-1/4" pocket hole screws.

Step 2

Measure and cut to fit the side 1x3s, and attach as you did in step 1.

Step 3

Measure the length of the shelves, and cut the 3 - 1x3 "rungs" to this length (I'd cut a hair longer so it's easy to slide your shelves in.

Construct the frame.

Step 4

Position the shelves inside the frame, and attach on underside with 1-1/4" screws and glue. I also attached to side frame with nails and glue for added support.

Step 5

Finishing Instructions
Preparation Instructions
Fill all holes with wood filler and let dry. Apply additional coats of wood filler as needed. When wood filler is completely dry, sand the project in the direction of the wood grain with 120 grit sandpaper. Vacuum sanded project to remove sanding residue. Remove all sanding residue on work surfaces as well. Wipe project clean with damp cloth.

It is always recommended to apply a test coat on a hidden area or scrap piece to ensure color evenness and adhesion. Use primer or wood conditioner as needed.
