Flip Up Desks that Convert to Table for our Tiny House

Submitted by Ana White on Wed, 05/25/2016 - 10:08
Difficulty
Beginner
| Print this plan

Clever desks that convert to a dining table.  Easy DIY plans by ANA-WHITE.com

Man you guys are all the smartest!

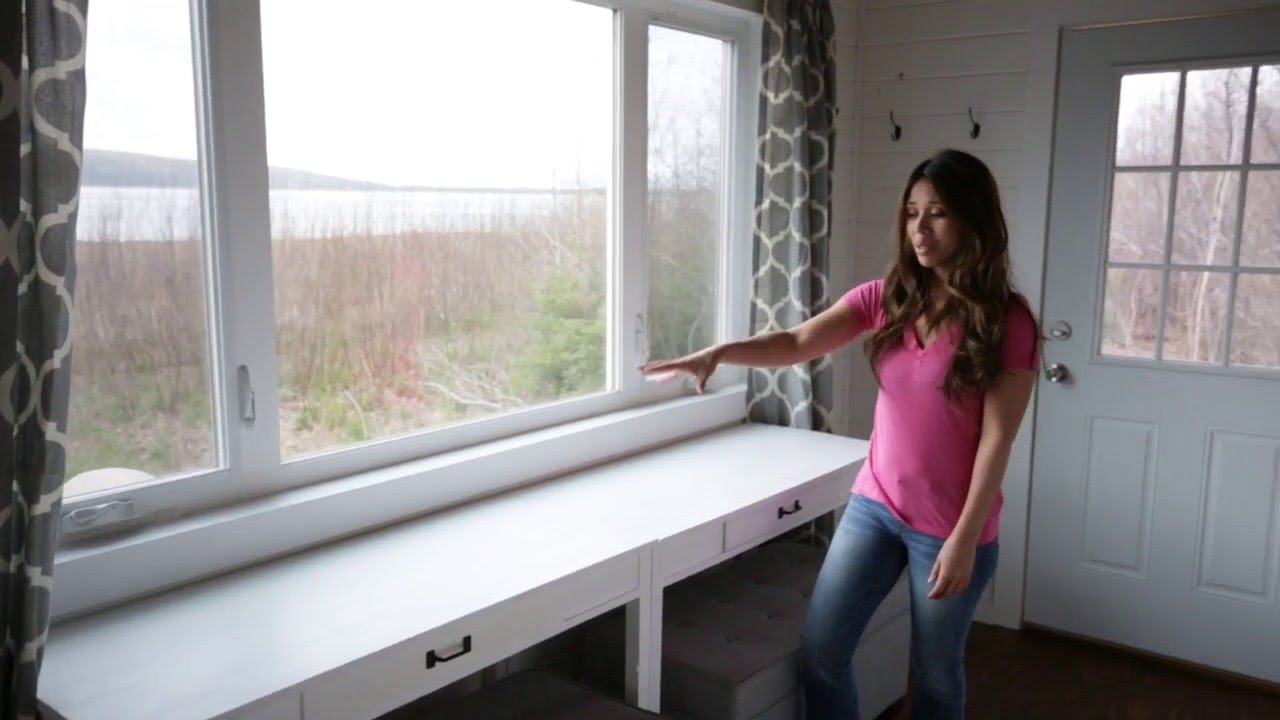

Last week when our DIY desks that convert to a dining table for our Tiny House went live -

Several of you noted that the drawer in the desks only took advantage of about 1/3 of the storage space that it could have.  I originally intended for a larger drawer, but the tabletop needed extra reinforcement, so ended up downsizing the drawer for structural reasons.

So why not have a flip top?  You guys are too smart.  Not only does this increase the storage by quite a bit - but this design is easy to build and less expensive.  Too good not to do a plan for you.

Just in case you missed the video for this project, here it is -

And the plans follow for the flip up desk.

Enjoy the rest of your week!

Ana

Dimensions
Dimensions shown above

Preparation

Shopping List

3 - 2x2 @ 8 feet long
2 - 1x4 @ 6 feet long
1 - sheet of 3/4" thick plywood (if the desk was made 3" smaller width wise, only 1/2 a sheet of plywood would be needed)
Edge banding in matching veneer(about 15') for finished plywood front edges
Simple butt hinges (3" recommended)
Soft close hinge support (set of 2, right and left hand)

Common Materials
Cut List

PER ONE DESK

4 - 2x2 @ 29-1/4" (Legs, may need to shorten some legs if building over tiny house wheel wells)

2 - 2x2 @ 15-3/4" (bottom stretcher)

2 - 1x4 @ 15-3/4" (side aprons)

2 - 1x4 @ 48" (front qand back aprons)

1 - 2x2 @ 48" (bottom back stretcher)

1 - 3/4" plywood @ 51" x 18-3/4" (bottom)

1 - 3/4" plywood @ 51" (no side overhangs) x 19-1/4" (front overhang is 1/2") (top)





Tools
Tape Measure
Speed Square
Pencil
Safety Glasses
Hearing Protection
Kreg Jig
Drill
Circular Saw
Miter Saw
Brad Nailer
Power Sander
Iron for Edge Banding

Instructions

Step 1

Build two of the legs sets per table.

Step 2

Attach the two leg sets togeter with the aprons and bottom stretcher.  Adjust for square.

Step 3

Notch out bottom plywood for legs.  Apply edge banding if staining to front and side exposed edges of plywood.  Place plywood inside the project and nail and glue down, or use screws.

Step 4

Apply edge banding to the front and side edges of top if staining.  Hinge top to back.  Also add a hinge support to soft close the top.
